Introduction to Positioners.
A positioner is a device attached to an actuator that receives an electronic or pneumatic signal from a controller and compares that signal to the actuator’s position.
If the signal and the actuator position differ, the positioner sends the necessary power—usually through compressed air—to move the actuator until the correct position is reached.
Trimteck manufactures a comprehensive line of Optimux globe control valves – and a variety of actuators, positioners, severe service trims and other accessories – that our applications engineers and representatives use to solve the most complex flow, pressure, and temperature control challenges quickly and economically.
Trimteck Positioners
Featured Positioner Solutions
At Trimteck, we are obsessed with quality.
Browse from our selection of engineered Positioner solutions for your applications below. Click a product to read full details and documentation.
-
ActuatorsOpTK™ Rotary Piston-Cylinder Actuator
-

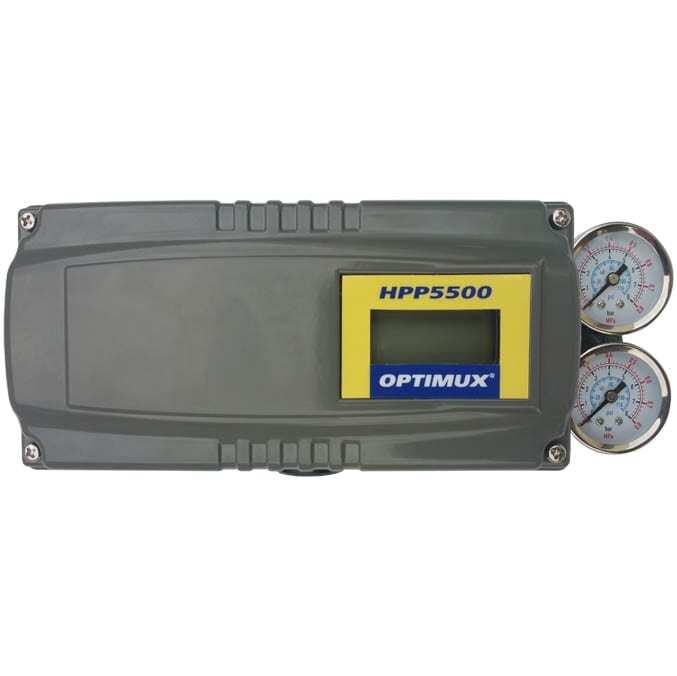

PositionersHPP5500™ Intrinsically Safe
Digital Positioner -
PositionersHPP4000™ Explosion Proof
Digital Positioner -

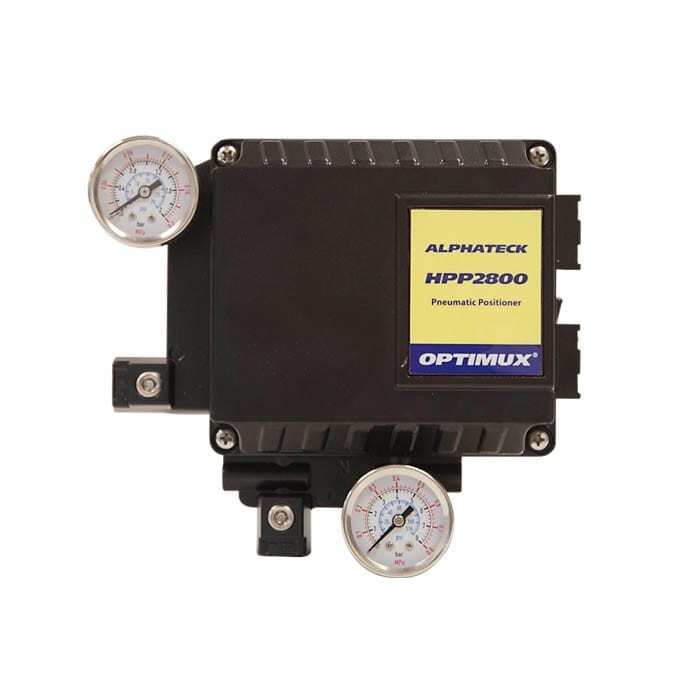

PositionersHPP2800™ Pneumatic Positioner
-
PositionersABB AV Electro-Pneumatic Positioner
Trimteck Positioners
Solution Information
How do we classify types of Actuators ?
There are two basic classifications for process control application:
1
Pneumatic Positioners
Receive and convert pneumatic signal
3 to 15 psi
6 to 30 psi
2
Digital Positioners
Receive and convert electronic signal
4 to 20 mA
10 to 50 mA
Pneumatic Positioner
| Technical Specifications | ||
|---|---|---|
| Type | Pneumatic | Electropneumatic |
| Input Signal | 3 to 15 psi | 4 to 20 mA |
| Supply Pressure | 30 to 150 psi | |
| Hysteresis | 1.0% F.S. | |
| Repeatability | 0.5% F.S. | |
| Max Flow Capacity | 11 SCFM @ 60 psi | |
| Air Consumption | 0.25 SCFM @ 60 psi | 0.31 SCFM @ 60 psi |
| Pneumatic Connections | 1⁄4-18 NPT female connection | |
- Characterized cam operation
- Easy adjustment and calibration
- Built-in dampers and gauge ports
- Corrosion-resistant
Intrinsically Safe Smart Digital Positioner
| Technical Specifications | ||
|---|---|---|
| Type | Digital | |
| Input Signal | 4 to 20 mA | |
| Minimum Current Signal | 3.8 mA | |
| Output Characteristics | Linear, Equal Percentage, Quick Open, configurable to 16 points | |
| Power requirements | 8.5 V | |
| Max Impedance | 500Ω/20 mA Dc | |
| Enclosure | NEMA 4X, IEC IP66 | |
| Safety Certification | Intrinsically Safe Ex ia IIC T6/T5 | |
| Digital Communication | HART® | |
| Digital Display | LCD | |
| Weight | 3.3 lbs (1.5 kg) | |
- Auto Setup
- Flexibility in installation
- High reliability
- One model for multiple characterizations
Explosion Proof Smart Digital Positioner
| Technical Specifications | ||
|---|---|---|
| Type | Digital | |
| Input Signal | 4 to 20 mA | |
| Feedback Signal | 4 to 20 mA | |
| Output Characteristics | Linear, Equal Percentage, Quick Open, configurable to 16 points | |
| Max Impedance | 500Ω/20 mA Dc | |
| Enclosure | NEMA 4X, IEC IP66 | |
| Safety Certification | Explosion Proof Ex d IIC T6 | |
| Digital Communication | HART® | |
| Digital Display | LCD | |
| Air Consumption | Below 2LPM @ 20 psi, 3 LPM @ 100 psi | |
| Auxiliary Switches | Dual limit switches | |
| Repeatability | +/- 0.3% F.S. | |
- Auto Calibration
- Variable orifices minimize hunting
- Corrosion resistant
- One model for multiple characterizations
Positioner with Advanced Diagnostics
| Technical Specifications | ||
|---|---|---|
| Type | Digital | |
| Input Signal | 4 to 20 mA | |
| Feedback Signal | 4 to 20 mA | |
| Output Characteristics | Linear, Equal Percentage, Quick Open, configurable to 16 points | |
| Max Impedance | 400Ω/20 mA Dc | |
| Approvals | ATEX, EIECx, FM/CSA, EAC TR-CU-012, SIL2 | |
| Digital Communication | HART® | |
| Digital Display | LCD | |
| Auxiliary Switches | Optional | |
| Repeatability | +/- 0.5% F.S. | |
- Advanced Diagnostic Capabilities
- Partial Stroke Testing Capabilities
- Remote Mounting Option
- Auto Calibration
- Resistant to Overpressure
- Corrosion resistant
More Information
Read our full documentation on Control Valves and Actuators.
What differentiates Trimteck from other manufacturers?
Organizational Differentiators
- Fast/Responsive
- Agile
- Consultative Quoting
- Control Valve Experts
- Experienced
- Robust & Modern Manufacturing Capabilities
- Made in USA
- Engineering Expertise
– Applications
– Design
– Simulation
Product Differentiators
- Reliable
- Robust
- Better/More Precise Control
- Broad Products/Solutions Portfolio
- Specific Technical Attributes for the range of service conditions:
– General
– Special
– Severe
