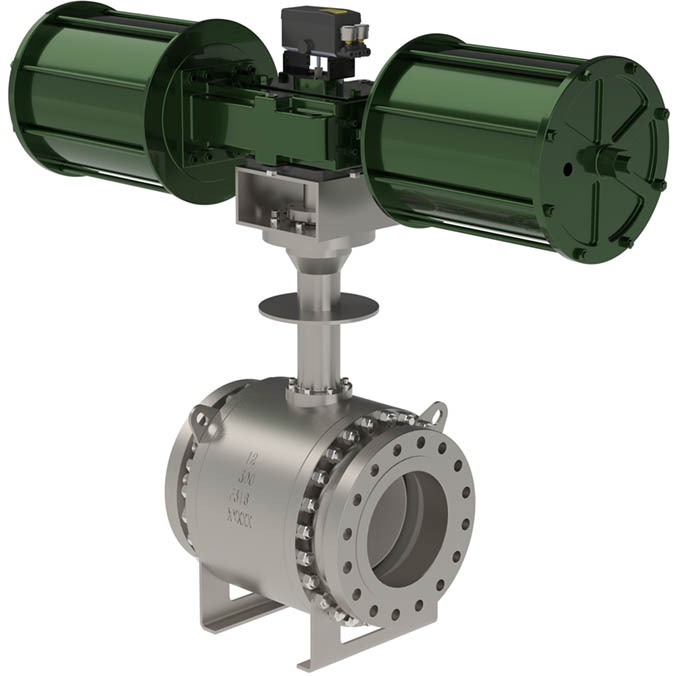

OpTB™ Cryogenic Trunnion Mounted Ball Control Valve
Categories:
The OpTB Cryogenic Trunnion Mounted Ball Valve is available in full and reduced port. This API 607 Fire Safe Ball Valve is a proven, rugged design. This is an ideal valve for on/off LNG applications – and is available in a traditional three-piece body as well as a top-entry version.
- Metal & Soft Seating Available
- Standard ISO Shaft and Mounting Pad compatible with multiple types of actuators
- Conforms to API 6D and API 607
Specifications
| Product Groups | Rotary Motion Cryogenic, Trunnion Ball Valves |
|---|---|
| Control Valve Type | Trunnion Ball |
| Sizes (NPS) | 2", 3", 4", 6", 8", 10", 12", 14″, 16″, 18″, 20″, 24″, 28″, 32″, 36″, 40″, 42″, 46″, 48″, 52″, 56″ |
| Body Styles | Two-Piece, Three-Piece, Top-Entry |
| Body Materials | Carbon Steel, Stainless Steel |
| Pressure Class (ASME/ANSI) | CL150, CL300, CL600, CL900, CL1500, CL2500 |
| Motion | Rotary |
| Shutoff Class (ANSI) | Class IV, Class VI |
| End Connections | RF Integral Flange, RTJ, Buttweld, Socketweld, Grayloc |
| Service | Special: High Pressure, Low Temperature, Low Flow, Corrosive, Erosive, Dirty, Zero Fugitive Emmissions |
| Operating Temperature | -320F to 752F |
| Flow Characteristic | Equal Percentage |
| Industries | Aerospace & Defense, Chemical/Petrochemical, Food & Beverage, Industrial Gases, Oil & Gas, Pulp & Paper, Refining |
| Certifications/Norms | ANSI/ISA, API 607, API 6D, ASME, CRN, NACE |
| Ball & Shaft Materials | 17-4 pH, 440 Stainless Steel, CF8M Stainless Steel + Hard Chrome, Nitronic |
| Seat Materials | Inconel, Kel-F, PEEK, PTFE, Stainless Steel |
