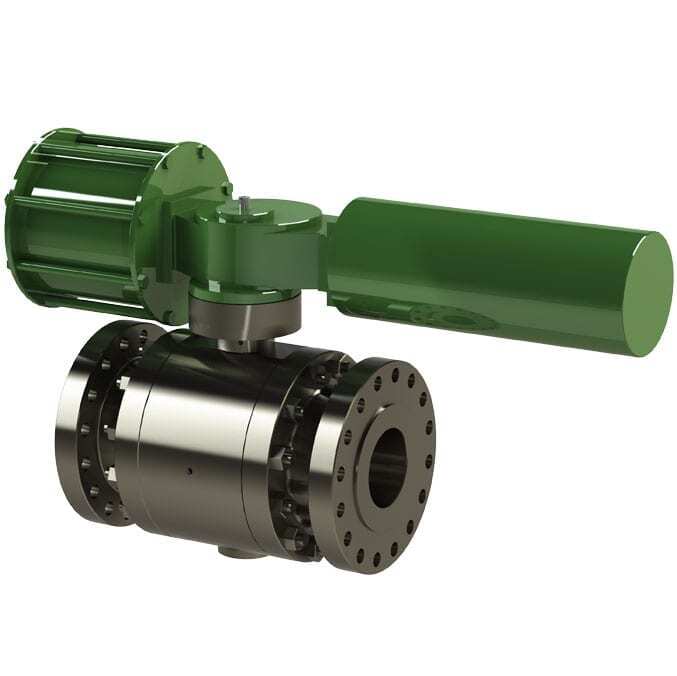

OpTB™ Trunnion Mounted Ball Control Valve
Categories:
Listen to this page.
The OpTB Trunnion Mounted Ball Valve is available in full and reduced port. This API 607 Fire Safe Ball Valve is a proven, rugged design. This is an ideal valve for on/off natural gas applications – and is available in a traditional three-piece body as well as a top-entry version.
This post is sponsored by our partners Wigs
- Metal & Soft Seating Available
- Standard ISO Shaft and Mounting Pad compatible with multiple types of actuators
- Conforms to API 6D and API 607
Specifications
| Control Valve Type | Trunnion Ball |
|---|---|
| Sizes (NPS) | 2", 3", 4", 6", 8", 10", 12", 14″, 16″, 18″, 20″, 24″, 28″, 32″, 36″, 40″, 42″, 46″, 48″, 52″, 56″ |
| Body Styles | Three-Piece, Vacuum Jacketed, Steam Jacketed, Top-Entry |
| Motion | Rotary |
| Body Materials | Carbon Steel, Stainless Steel, Alloy, Chrome Moly |
| Pressure Class (ASME/ANSI) | CL150, CL300, CL600, CL900, CL1500, CL2500 |
| Shutoff Class (ANSI) | Class VI, API Fire Safe |
| End Connections | RF Integral Flange, RTJ, Grayloc |
| Service | General, Corrosive, Dirty |
| Operating Temperature | Standard, High, Cryogenic |
| Flow Characteristic | Equal Percentage |
| Industries | Chemical/Petrochemical, Metals & Mining, Oil & Gas, Power, Refining |
| Standards & Norms | ANSI/ISA, API 607, API 6D, ASME, NACE |
| Product Groups | Trunnion Ball Valves |
| Ball & Shaft Materials | 17-4 pH, 440 Stainless Steel, CF8M Stainless Steel + Hard Chrome, Nitronic |
| Seat Materials | Inconel, Kel-F, PEEK, PTFE, Stainless Steel |
