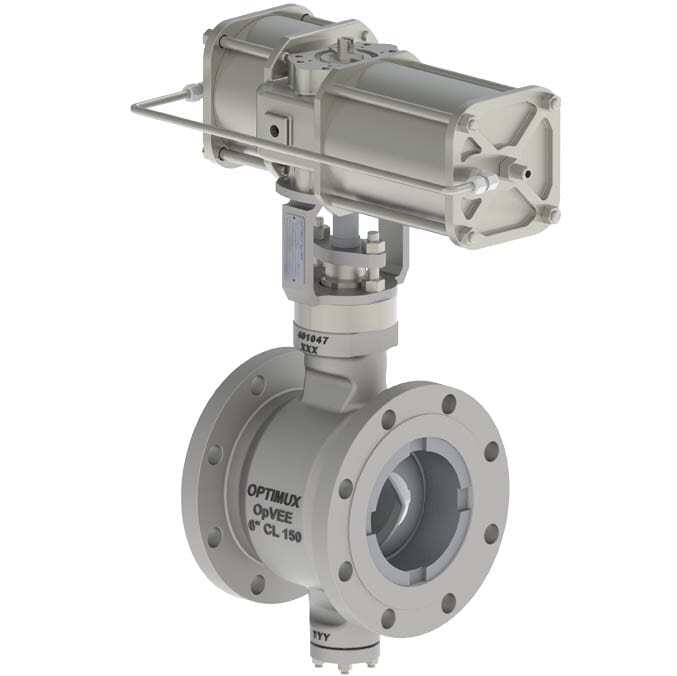

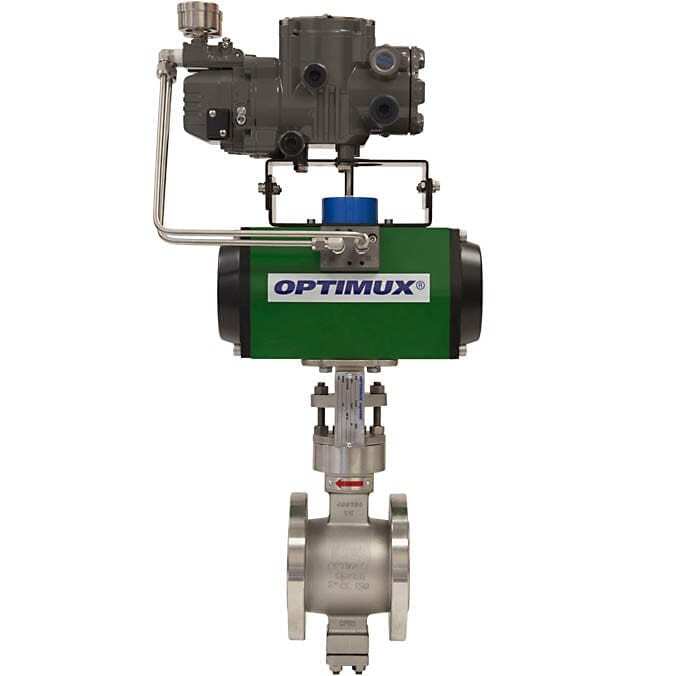

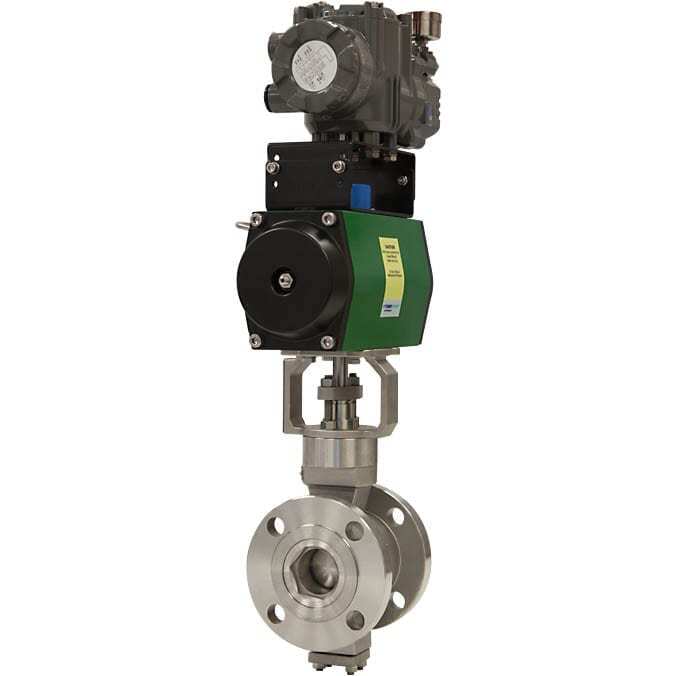

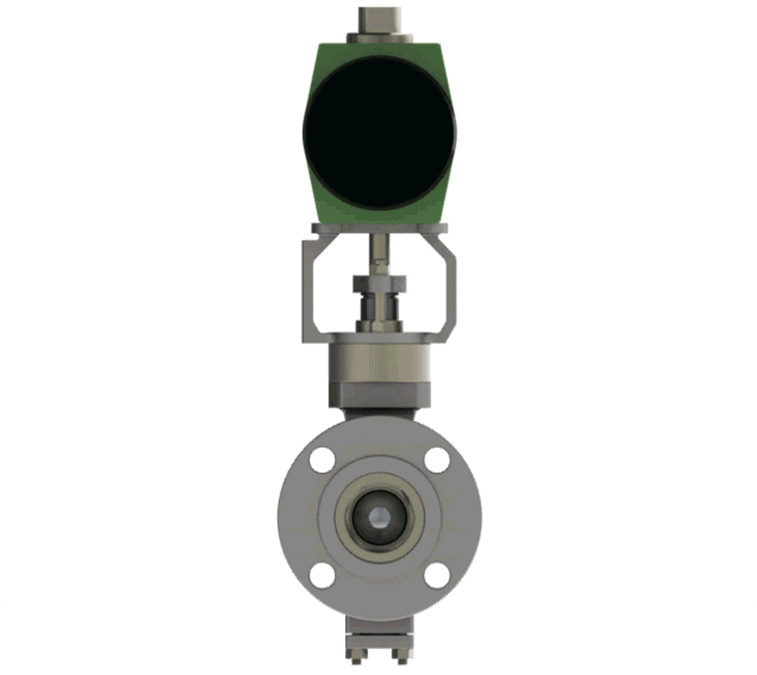

OpVEE™ V-Notch Ball Control Valve
Categories:
Listen to this page.
Trimteck’s OpVEE is the highest performance V-Notch Ball Control Valve on the market today. Its advanced design features have taken into account the requirements and recommendations of process control engineers and plant personnel from across varying industries: Pulp & Paper, Chemical, Oil & Gas, Power Generation, and others.

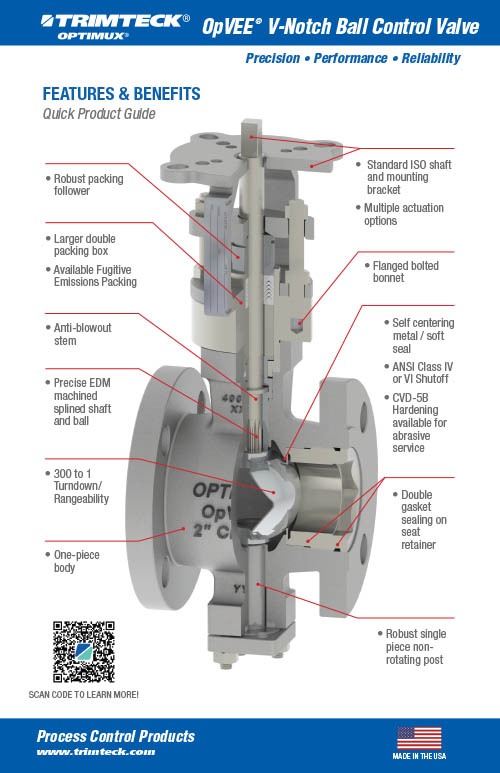

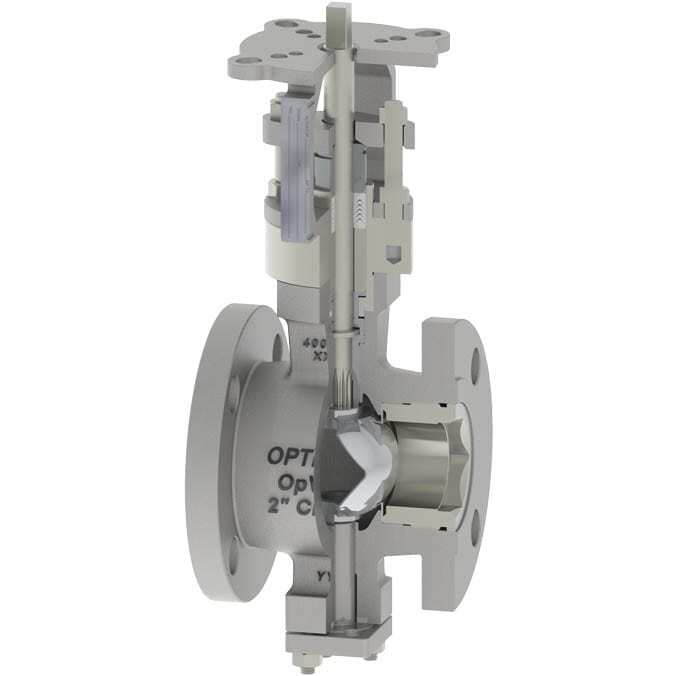

The OpVEE combines unique features such as an oversized post bearing system, and a large packing box with a robust bolted flange and stem blowout prevention. Special care is given to the mechanical connection between shaft and ball, which is splined using precise EDM techniques for maximum grip to avoid any lost motion or dead band.
- 300 to 1 Rangeability/Turndown
- Class IV & VI Available
- Standard ISO Shaft and Mounting Pad compatible with multiple types of actuators
Specifications
| Control Valve Type | V-Notch Ball |
|---|---|
| Sizes (NPS) | 1", 1 1/2", 2", 3", 4", 6", 8", 10", 12", 14″, 16″, 18″, 20″, 24″ |
| Body Styles | Fabricated (XT), Single Piece, Vacuum Jacketed, Steam Jacketed |
| Motion | Rotary |
| Body Materials | Carbon Steel, Stainless Steel, Alloy, Chrome Moly |
| Pressure Class (ASME/ANSI) | CL150, CL300, CL600 |
| Shutoff Class (ANSI) | Class IV, Class VI |
| End Connections | RF Integral Flange, Wafer/Flangeless |
| Service | General, Corrosive, Dirty |
| Operating Temperature | Standard, High |
| Flow Characteristic | Equal Percentage |
| Industries | Chemical/Petrochemical, Food & Beverage, Metals & Mining, Oil & Gas, Power, Pulp & Paper, Refining |
| Standards & Norms | ANSI/ISA, ASME, NACE |
| Product Groups | Segmented/V-Notch Ball Valves |
| Ball & Shaft Materials | 17-4 pH, 440 Stainless Steel, CF8M Stainless Steel + Hard Chrome, Nitronic |
| Seat Materials | Inconel, Kel-F, PEEK, PTFE, Stainless Steel |
