ST-3D™ Noise Plate
Attenuation Diffuser
Categories:

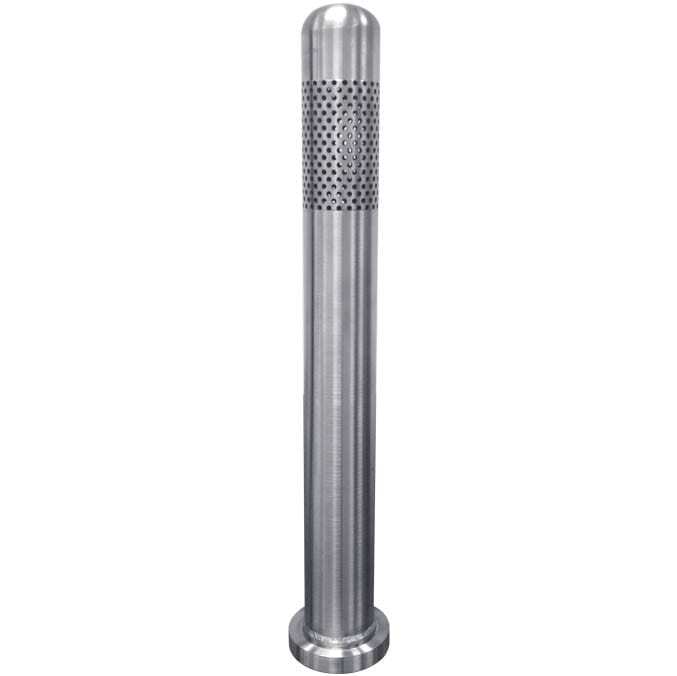

In certain process conditions, the Trimteck ST-3D Diffuser can be used in series with any style valve to reduce the sound level up to 25dBA, while often eliminating the need for more costly in-valve noise attenuation trim.
ST-3D Diffusers share high pressure drops with the control valve, and control the sound level by passing flow at certain conditions through a series of small openings to eliminate excessive turbulence and energy and generate backpressure.
Correct sizing and spacing of the drilled holes is critical, which is why Trimteck custom-engineers each ST-3D Diffuser to accommodate the flow capacity required for any particular application.
- Length and number of drilled holes are custom-designed for specific applications
- Commonly manufactured from carbon and stainless steels, but available in a variety of other materials
Specifications
| Sizes (NPS) | 1/2", 3/4", 1", 1 1/2", 2", 3", 4", 6", 8", 10", 12", 14″, 16″, 18″, 20″, 24″, 28″, 32″, 36″, 40″, 42″ |
|---|---|
| Trim Type | Noise Abatement |
| Base Valve Type | Globe, Angle, V-Notch Ball, Eccentric Plug, Trunnion Ball, Butterfly, Custom-Engineered/Specialty |
| Pressure Class (ASME/ANSI) | CL150, CL300, CL600, CL900, CL1500, CL2500 |
| Service | Noise |
| Industries | Aerospace & Defense, Chemical/Petrochemical, Food & Beverage, Industrial Gases, Oil & Gas, Power, Pulp & Paper, Refining |
| Product Groups | Noise Attenuation |
| Flow Direction | One Way |
| Pressure Stages | 1 |
| Style | Open Shell, Outlet Head, Wafer |
