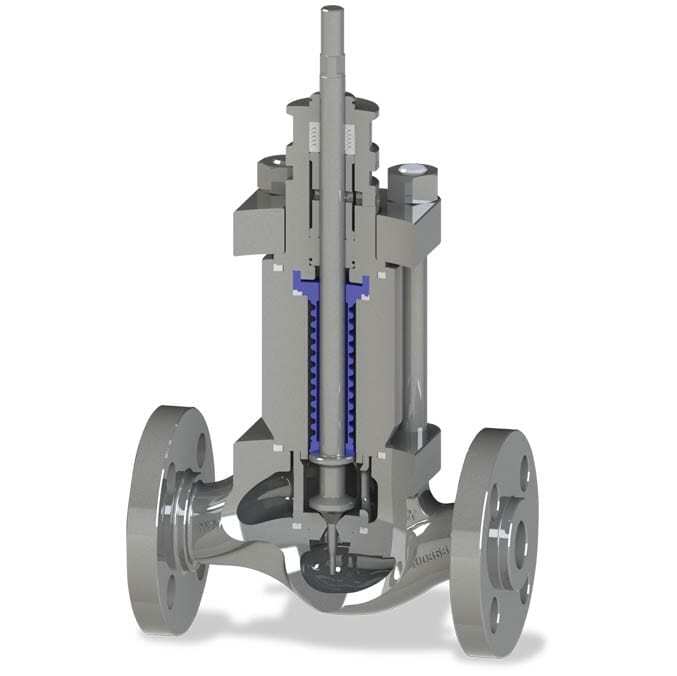

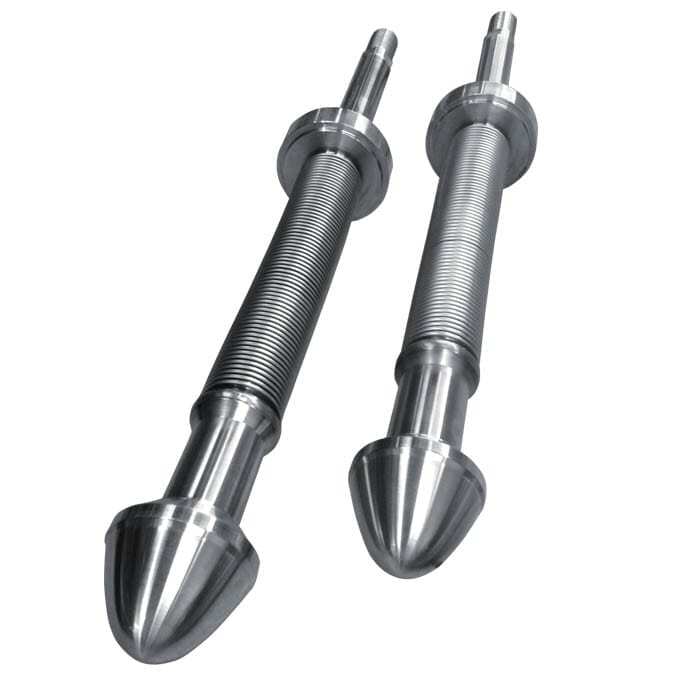

GuardMaster Metal Bellows Seal
Categories:

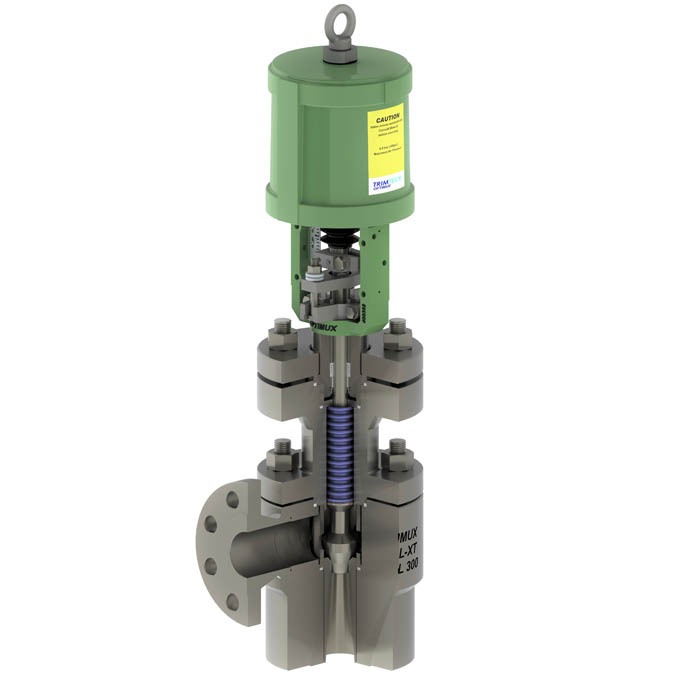

In addition to a variety of effective packing configurations that help to reduce fugitive emissions, Optimux OpGL Control Valves can be equipped with the GuardMaster Metal Bellows Seal to ensure zero fugitive emissions. The GuardMaster Metal Bellows Seal allows plant stakeholders to comply with the most stringent international safety and environmental regulations.
Construction
- Modular
- Tight Tolerances
- Minimal Weld Points
- Monitoring Port Available
Materials
- Inconel Standard
- Hastelloy B & C Variations
- Full Traceability
Operation
- Up to 6 Million Cycles
- -380F to 1120F
- Pressures Up to 1300PSI
Specifications
| Sizes (NPS) | 1/2", 1", 1 1/2", 2", 3", 4", 6", 8", 10", 12", 14″, 16″, 18″, 20″, 24″ |
|---|---|
| Trim Type | Metal Bellows Seal |
| Base Valve Type | Globe, Angle |
| Body Materials | Carbon Steel, Stainless Steel, Alloy, Chrome Moly |
| Pressure Class (ASME/ANSI) | CL150, CL300, CL600 |
| Shutoff Class (ANSI) | Class III, Class IV, Class V, Class VI |
| End Connections | RF Integral Flange, NPT, RTJ, Socketweld, Buttweld, Grayloc |
| Service | Zero Fugitive Emissions |
| Operating Temperature | Standard, High, Cryogenic |
| Flow Characteristic | Equal Percentage, Linear, Bi-Linear, Quick Open, Custom |
| Industries | Chemical/Petrochemical, Food & Beverage, Industrial Gases, Oil & Gas, Refining |
| Standards & Norms | ANSI/ISA, ASME, CRN, NACE, PED |
| Product Groups | GuardMaster MBS |
