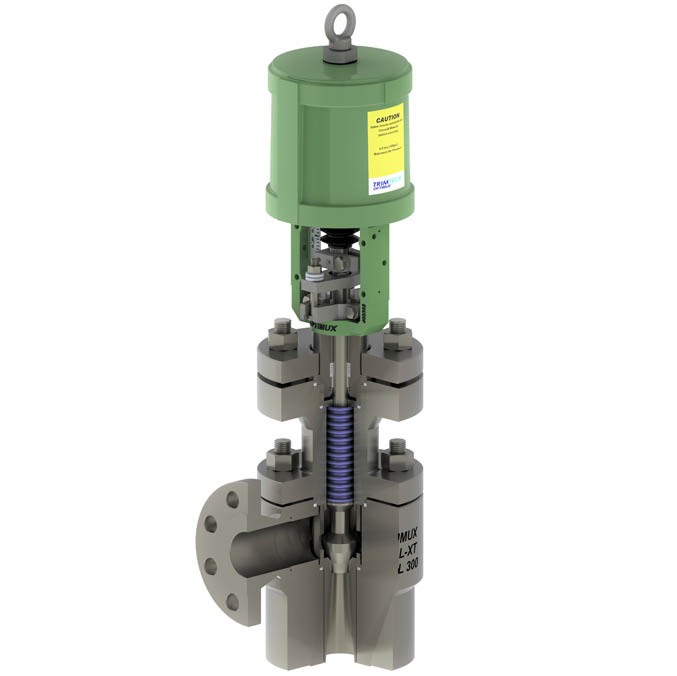

Trimteck Guardmaster Metal Bellows Seal Control Valve

GuardMaster Metal Bellows Seal

Name: post_title
Brand: Trimteck®
Price: none USD
Availability: InStock
Rating: 5 (50 reviews)

CONTACT SALES

REQUEST QUOTE

Category: Severe Service

In addition to a variety of effective packing configurations that help to reduce fugitive emissions, Optimux OpGL Control Valves can be equipped with the GuardMaster Metal Bellows Seal to ensure zero fugitive emissions. The GuardMaster Metal Bellows Seal allows plant stakeholders to comply with the most stringent international safety and environmental regulations.

Construction

Modular
Tight Tolerances
Minimal Weld Points
Monitoring Port Available

Materials

Inconel Standard
Hastelloy B & C Variations
Full Traceability

Operation

Up to 6 Million Cycles
-380F to 1120F
Pressures Up to 1300PSI

Base Valve Type	Globe, Angle
Trim Type	Metal Bellows Seal
Sizes (NPS)	1/2", 1", 1 1/2", 2", 3", 4", 6", 8", 10", 12", 14″, 16″, 18″, 20″, 24″
Body Materials	Carbon Steel, Stainless Steel, Alloy, Chrome Moly
Pressure Class (ASME/ANSI)	CL150, CL300, CL600
Shutoff Class (ANSI)	Class III, Class IV, Class V, Class VI
End Connections	RF Integral Flange, NPT, RTJ, Socketweld, Buttweld, Grayloc
Service	Zero Fugitive Emissions
Operating Temperature	Standard, High, Cryogenic
Flow Characteristic	Equal Percentage, Linear, Bi-Linear, Quick Open, Custom
Industries	Chemical/Petrochemical, Food & Beverage, Industrial Gases, Oil & Gas, Refining
Standards & Norms	ANSI/ISA, ASME, CRN, NACE, PED
