ABB EDP300 Digital Positioner Advanced Diagnostics • Trimteck®
Categories:

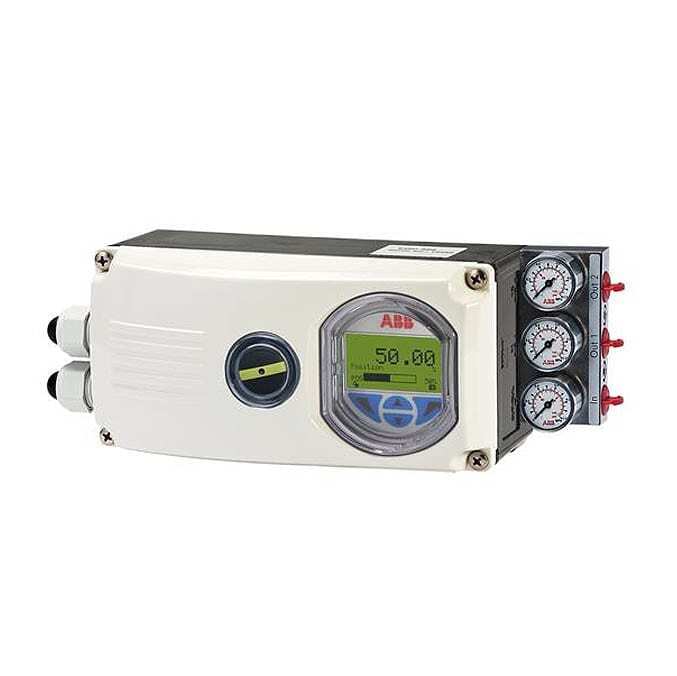

The PositionMaster EDP300 is an electronically configurable positioner with communication capabilities, designed for mounting on pneumatic linear or part-turn actuators. It features a compact design, modular construction, and an excellent cost-performance ratio. Fully automatic determination of the control parameters and adaptation to the actuator allow for considerable time savings as well as optimum control behavior.
The extended diagnostics feature of the PositionMaster EDP300 provides the user the opportunity to perform selectable valve performance diagnostics and to schedule Control Valve preventive maintenance as determined by the results to ensure increased system availability and to minimize unforeseen cost intensive failures.
- Partial Stroke Test
- Valve Signature
- Speed Over Position Test
- Drag Indicator
- Valve Step Response
Specifications
| Power | 8.5V |
|---|---|
| Positioner Type | Digital |
| Control Signal | 4-20mA |
| Certification | ATEX, FM/CSA, EIECx, EAC TR-CU-012, SIL2 |
| Product Groups | Digital Positioners |
| Air Consumption | 3 LPM @ 100psi, Below 2LPM @ 20psi |
| Digital Display | LCD |
| Max Impedance | 400Ω/20 mA Dc |
| Output Characteristics | Custom-Configurable Curve, Equal Percent, Linear, Quick Open |
| Repeatability | +/- 0.5% F.S. |
| Seat Materials | Stainless Steel |
